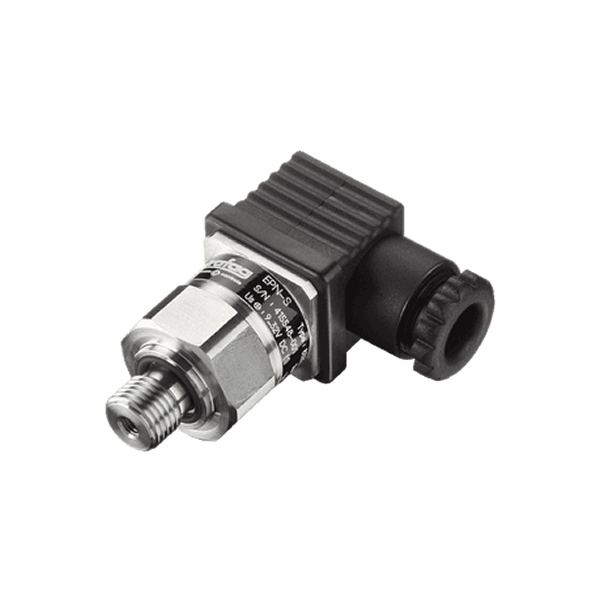

Trafag Brand EPN-S 8320 Electronic Pressure Switch
● In Stock
Main features
- Rugged design for harsh environments
- Wide temperature range
- Excellent long-term stability
- Very compact design
- Switch point factory set or programmable on site with Trafag Sensor Communicator SC
Product Description
Technical Data
More Information
| Product code |
8320 |
| Name |
EPN-S |
| Designation |
Electronic Pressure Switch |
| Product category |
Electronic pressure switches |
| Measuring range |
0 ... 2.5 a 0 ... 600 bar 0 ... 30 a 0 ... 7500 psi |
| Measuring principle |
Thin-film-on-steel |
| Applications |
Engine manufacturing
HVAC
Hydraulics
Machine tools
Railways
Shipbuilding |
| Approval / conformity |
DNV-GL, RMRS EN 50155 (Railways) EN 45545-2 (Fire protection, railways) |
| Accuracy @ 25°C typ. |
± 0.5 % FS typ. (Switchpoint) |
| Output signal |
Switching output: 1 PNP |
| Electrical connections |
EN175301-803-A (DIN43650-A); Cable |
| Pressure connections |
G1/4" m (Seal); 1/4"NPT m; G1/2" m, DIN3852-A; M14x1.5 m, DIN3852-A; 1/2"NPT m |
| Media temperature |
-40°C ... +125°C |
| Ambient temperature |
Standard: -25°C ... +85°C Option accessory 67: -40°C ... +125°C |
