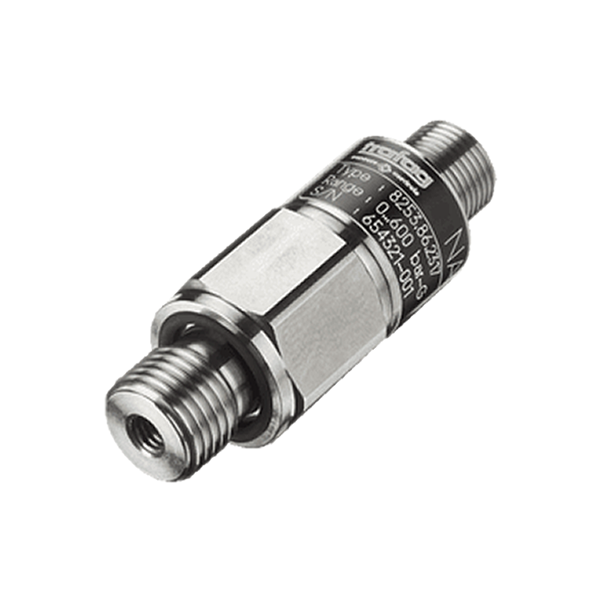

Trafag Brand NAH 8253 Precision Pressure Transmitter
● In Stock
Main features
Smallest design
Accuracy classes 0.1 %, 0.15 %, 0.3 %
Excellent temperature resistance
Relative and absolute pressure measurement
Optional: Dielectric strength 500 VAC, meets EN 50155 (Railways)
Product Description
Technical Data
More Information
Product code
8253
Name
NAH
Designation
Pressure Transmitter
Product category
Pressure transmitters
Measuring range
0 ... 2.5 a 0 ... 600 bar 0 ... 30 a 0 ... 7500 psi
Measuring principle
Thin-film-on-steel
Applications
Hydraulics
Machine tools
Process technology
Railways
Test benches
Accuracy @ 25°C typ.
± 0.3 % FS typ. ± 0.15 % FS typ. ± 0.1 % FS typ.
Output signal
4 ... 20 mA, 0 ... 5 VDC, 1 ... 6 VDC, 0 ... 10 VDC, 0.5 ... 4.5 VDC ratiometric
Electrical connections
Industrial standard, contact distance 9.4 mm; M12x1; MIL-C 26482; Cable IP67
Pressure connections
G1/4" m; 1/4"NPT m; 1/4"NPT f; 7/16"-20UNF m; 7/16"-20UNF f, DIN3866, valve opener; 7/16"-20UNF m, SAE4 (J1926); 9/16"-18UNF m, SAE6 (J1926); 3/8"-24UNF m, SAE3 (J514); R1/4" m, DIN2999; M14x1.5 m, DIN EN ISO 6149-2
Media temperature
-40°C ... +125°C
Ambient temperature
-40°C ... +125°C
