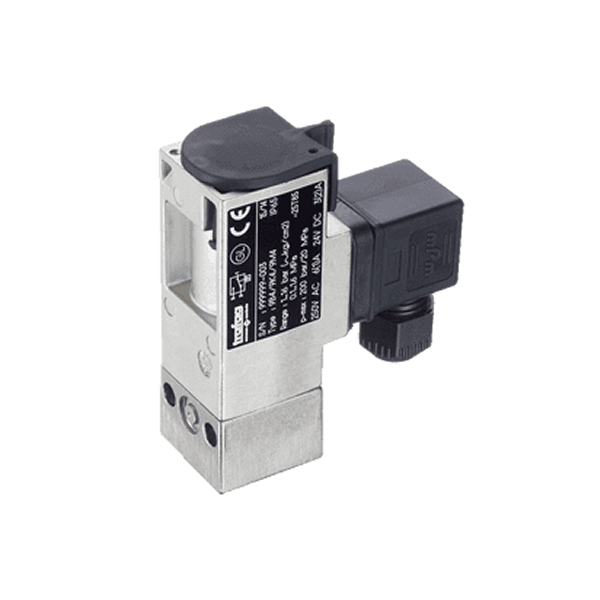

Trafag Brand PST4B 9B4 Picostat Pressure switch
● In Stock
Main features
- Improved vibration resistance
- Compact design
- Rugged housing
- Protection IP65
- Any mounting position possible
Product Description
Technical Data
More Information
| Product code |
9B4 |
| Name |
PST4B |
| Designation |
Picostat Pressure switch |
| Product category |
Mechanical pressure switches |
| Measuring range |
-0.6 ... 3.4 to 4 ... 40 bar -8 ... 45 to 60 ... 500 psi |
| Measuring principle |
Bellows |
| Applications |
Engine manufacturing
Machine tools
Railways
Shipbuilding |
| Approval / conformity |
ABS, BV, CCS, DNV-GL, KRS, LR, NKK, RINA, RMRS EN60730-1/ EN60730-2-6: Type 2.B.H |
| Repeatability |
± 0.5 % FS typ. |
| Output signal |
1 Floating change-over contact (SPDT) |
| Electrical connections |
EN175301-803-A (DIN43650-A) |
| Pressure connections |
G1/8" f, G1/4" f, M10x1.0 f, G1/4" m |
| Media temperature |
Standard: –25°C ... +125°C with sensor 789/790/791: –40°C ... +125°C |
| Ambient temperature |
Standard: –25°C ... +85°C with sensor 789/790/791: –40°C ... +85°C |
