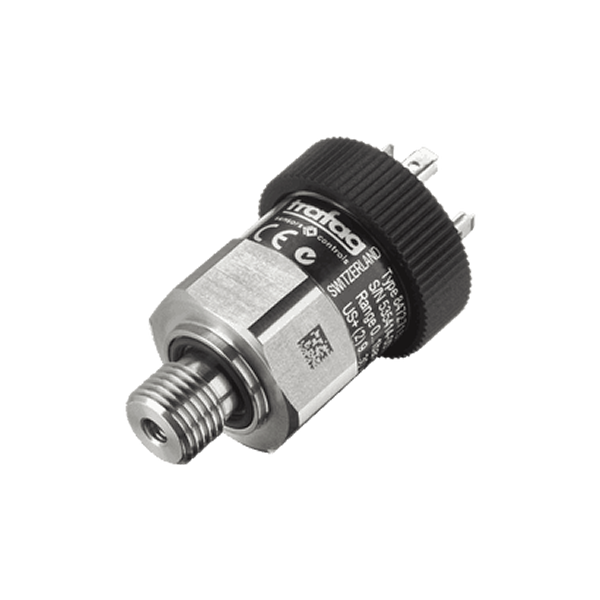

Trafag Brand ECT 8473 Pressure Transmitter with increased accuracy
● In Stock
Main features
Measuring ranges from 100 mbar
Excellent media compatibility
Relative or absolute pressure measurement
Titanium version optional
Frontal membrane optional
Product Description
Technical Data
More Information
Product code
8473
Name
ECT
Designation
Industrial Pressure Transmitter
Product category
Pressure transmitters
Measuring range
0 ... 0.1 a 0 ... 40 bar 0 ... 1.5 a 0 ... 500 psi
Measuring principle
Thick-film-on-ceramic
Applications
Hydraulics
Machine tools
Water treatment
Accuracy @ 25°C typ.
± 0.3 % FS typ. (± 0.5 % FS typ., ± 1 % FS typ.)
Output signal
4 ... 20 mA, 0 ... 5 VDC, 1 ... 6 VDC, 0 ... 10 VDC, 0.5 ... 4.5 VDC ratiom.
Electrical connections
EN175301-803-A (DIN43650-A); M12x1; Industrial standard, contact distance 9.4 mm; Packard Metri Pack; Cable
Pressure connections
G1/4" f; G1/4" m; G1/2" m, DIN3852-A; G1/2" m, DIN3852-E; G1/2" m, DIN3852-E, with inner cone; 1/4"NPT m, ANSI B1.20.1; 1/8"NPT m, ANSI B1.20.1; 7/16"-20UNF m, SAE4 (J1926); 7/16”-20UNF m, DIN3866; 7/16”-20UNF f, SAE J512, valve opener; 9/16"-18UNF m, SAE
Media temperature
-25°C ... +125°C
Ambient temperature
-25°C ... +125°C Cable PVC 22: -5°C ... +60°C Cable PUR 24: -20°C ... +70°C Cable Raychem 08: -20°C ... +100°C
