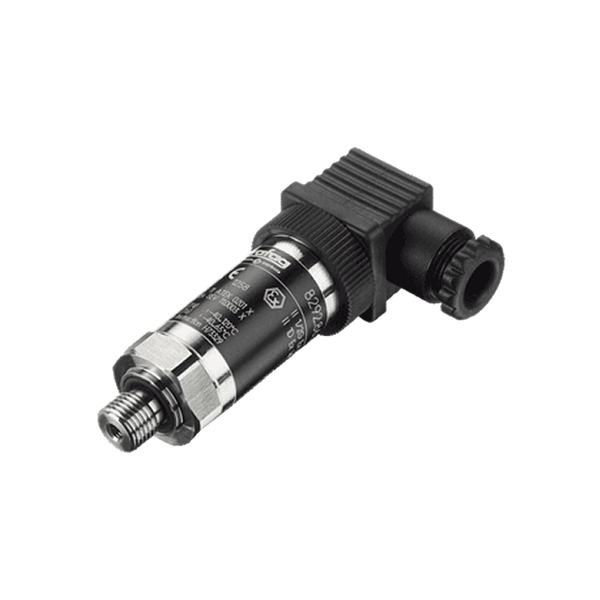

Trafag Brand EXNT 8292 Ex Pressure Transmitter
● In Stock
Main features
- Pressure ranges from 0.4 to 2000 bar
- ATEX and IECEx
- II 1G Ex ia IIC T4/T6 Ga II 1D Ex ia IIIC T160°C Da I M1 Ex ia I Ma II 1/2G Ex ia IIC T4/T6 Ga/Gb
- Optional with hydrogen-compatible sensor
- EC79/2009 certified by the KBA Kraftfahrt-Bundesamt
Product Description
Technical Data
More Information
| Product code |
8292 |
| Name |
EXNT |
| Designation |
Ex Pressure Transmitter |
| Product category |
Pressure transmitters |
| Measuring range |
0 ... 0.4 a 0 ... 2000 bar 0 ... 5 a 0 ... 30000 psi |
| Measuring principle |
Thin-film-on-steel |
| Applications |
20, 21, 22 (dust) and mining
Ex Zones 0, 1, 2 (gas)
Hydrogen
Shipbuilding |
| Approval / conformity |
DNV-GL, KRS, RMRS ATEX / IECEx, according to the norm EN/IEC 60079-0/EN 60079-11/ EN 60079-26/ EN 50303 |
| Accuracy @ 25°C typ. |
± 0.5 % FS typ. ± 0.3 % FS typ. |
| Output signal |
4 ... 20 mA |
| Electrical connections |
EN175301-803-A; M12x1; MIL-C 26482; Binder 723; Cable |
| Pressure connections |
G1/4" m; G1/4" m (Manometer) EN 837; G1/4" f; G1/2" m; G1/2" m (Manometer) EN 837; R1/4" m; 1/4"NPT m; M18x1.5 m |
| Media temperature |
Max. –40°C ... +120°C (see electrical connection) |
| Ambient temperature |
Max. –40°C ... +120°C (see electrical connection) |
