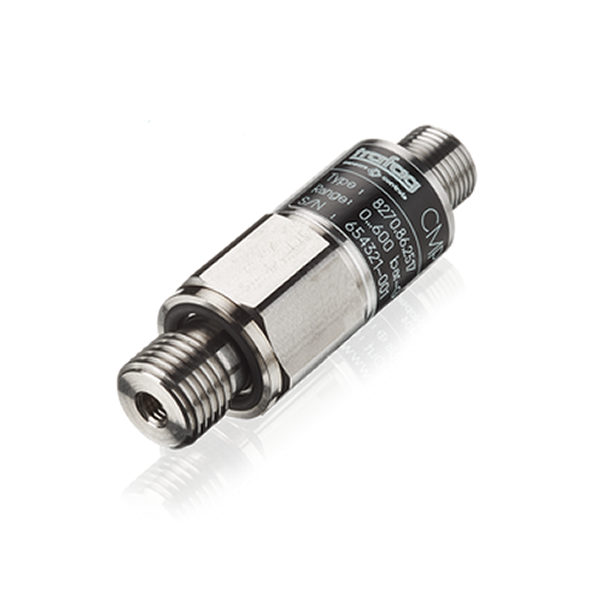

Trafag Brand CMP 8270 CANopen High-Accuracy Pressure Transmitter
● In Stock
Main features
Small and rugged construction
Different accuracy classes
Measurement of pressure and temperature
CAN open bus protocol DS301/DS404 supports CAN 2.0A/B
LSS (DS 305 V2.0)
Product Description
Technical Data
More Information
Product code
8270
Name
CMP
Designation
CANopen Miniature Pressure Transmitter
Product category
Pressure transmitters
Measuring range
0... 0.2 a 0... 600 bar 0 ... 3 a 0 ... 7500 psi
Measuring principle
Thin-film-on-steel, piezoresistive
Applications
Engine manufacturing
Hydraulics
Machine tools
Process technology
Railways
Test benches
Accuracy @ 25°C typ.
± 0.5 % FS typ. ± 0.3 % FS typ. ± 0.15 % FS typ. ± 0.1 % FS typ.
Output signal
Bus protocol CANopen DS404
Electrical connections
M12x1
Pressure connections
G1/4" m; 1/4"NPT m; 1/4"NPT f; 7/16"-20UNF m; 7/16"-20UNF f, DIN3866, valve opener; 7/16"-20UNF m, SAE4 (J1926); 9/16"-18UNF m, SAE6 (J1926); M10x1 m, DIN EN ISO 6149-2
Media temperature
-50°C ... +135°C
Ambient temperature
-40°C ... +125°C
