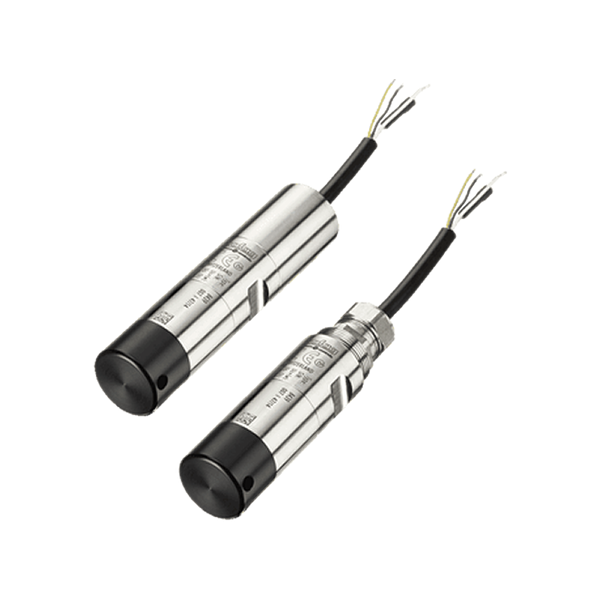

Trafag Brand ECL 8439 Submersible Pressure Transmitter
● In Stock
Main features
- Also suitable for thick and viscous media
- Different materials for optimum media compatibility
- Configurable measuring ranges
- Optional: Enhanced lightning protection
Product Description
Technical Data
More Information
| Product code |
8439 |
| Name |
ECL |
| Designation |
Submersible Pressure Transmitter |
| Product category |
Pressure transmitters |
| Measuring range |
0 ... 0.1 a 0 ... 6.0 bar 0 ... 1.5 a 0 ... 100 psi |
| Measuring principle |
Thick-film-on-ceramic |
| Applications |
Process technology
Seawater
Shipbuilding
Water treatment (wastewater, grey-water, drinking water) |
| Approval / conformity |
DNV-GL EU RO Mutual Recognition Type Approval Certificate |
| Accuracy @ 25°C typ. |
± 0.3 % FS typ. Range 0 ... 0.1 to 0 ... 0.2 bar: ± 0.5 % FS typ. |
| Output signal |
4 ... 20 mA |
| Electrical connections |
Cable PUR/PE |
| Media temperature |
max. -25°C ... +70°C |
| Ambient temperature |
max. -25°C ... +70°C |
