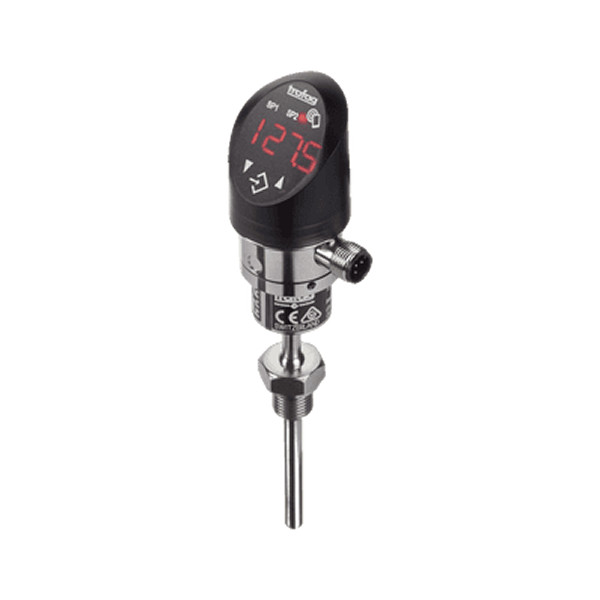

Trafag Brand DTP 8180 Display Temperature Switch and Transmitter
● In Stock
Main features
- Parametrisation also via NFC-smartphone App (Android)
- Display and electrical connection are independently rotatable 335°/343°
- Analogue output switchable mA or V
- Integrated data logger
- Temperature measuring range adjustable, 50 … 100 % of the nominal range
Product Description
Technical Data
More Information
| Product code |
8180 |
| Name |
DTP |
| Designation |
Temperature switch |
| Product category |
Temperature transmitter |
| Measuring range |
-50°C ... +150°C / -58°F ... 302°F ajustable 50 ... 100 % FS |
| Measuring principle |
PT 1000, DIN EN 60751 class A, 2 conductors |
| Applications |
Cooling and lubrication systems
HVAC
Hydraulic power units
Machine tools
Process technology |
| Accuracy @ 25°C typ. |
± 0.5 % FS typ.+ temperature sensor error |
| Output signal |
4 ... 20 mA, 0 ... 5 VDC, 1 ... 6 VDC, 0 ... 10 VDC, switchable mA or V |
| Electrical connections |
Male electrical connector M12x1, 5-pole Male electrical connector M12x1, 4-pole |
| Pressure connections |
G1/8" m; G1/4" m; G1/2" m; 1/4" NPT m; 1/2" NPT m; Tri-Clamp DIN32676; Sanitary fitting DIN11851 |
| Ambient temperature |
-25°C ... +85°C |
