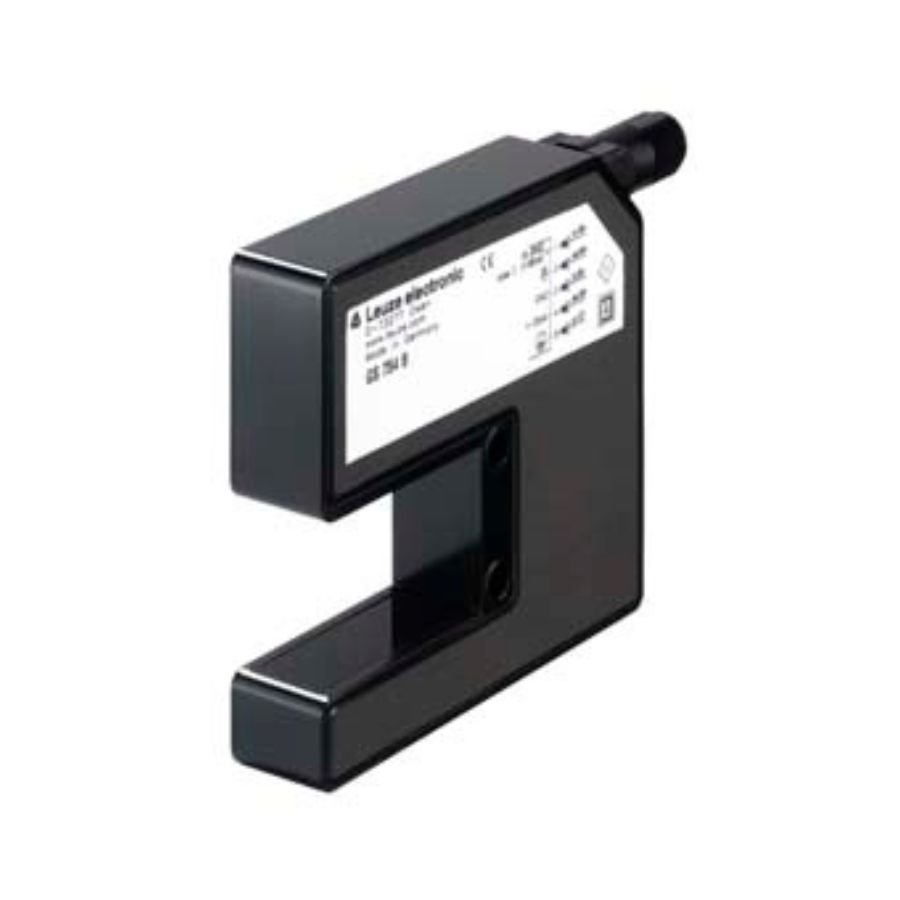

Measurement field length 25 mm
Light source LED, Infrared
Measurement data
System resolution
a: 0.1 mm (mode 1 ... 5)
b: 0.014 mm (Mode 7)
Electrical data
Protective circuit
Overvoltage protection
Polarity reversal protection
Short circuit protected
Performance data
Supply voltage UB 18 ... 30 V, DC
Outputs
Align Output
Type Analog output
Connection 1
Type of connection Connector
Thread size M12
Material Metal
No. of pins 5 -pin
Mechanical data
Mouth width 27 mm
Mouth depth 42 mm
Dimension (W x H x L) 19.4 mm x 82.1 mm x 91 mm
Housing material Metal
Metal housing Diecast zinc
Lens cover material Plastic / PMMA
Net weight 270 g
Operation & Display
Type of configuration Software
Environmental data
Ambient temperature, operation -20 ... 50 °C
Ambient temperature, storage -30 ... 70 °C
Certifications
Degree of protection IP 67
Protection class III
Certifications c UL US
Standards applied IEC 60947-5-2
