| Brand | Leuze |

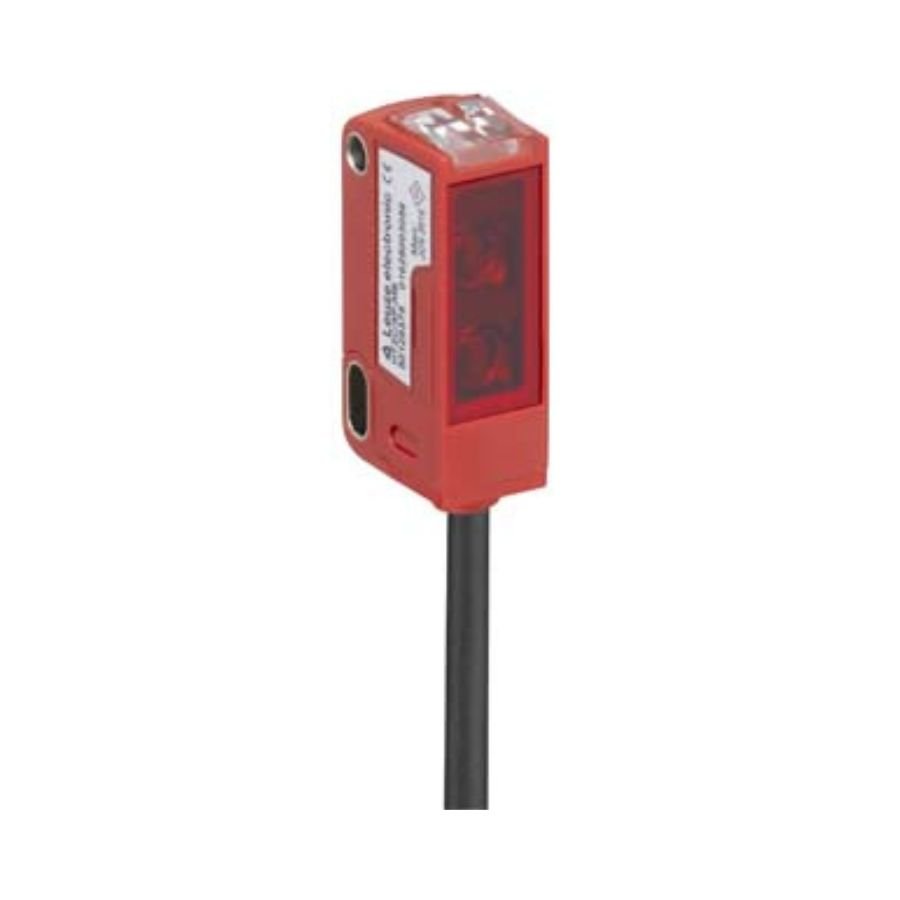

| Type | Throughbeam Photoelectric Sensor Receiver |
| Basic data | Series 3C
Operating principle Throughbeam principle
Device type Receiver |
| Optical data | Operating range 0.05 ... 8.5 m
Operating range limit 0.05 ... 10 m |
| Electrical data | Protective circuit Polarity reversal protection
Short circuit protected |
| Performance data | Supply voltage UB 10 ... 30 V, DC, Incl. residual ripple
Residual ripple 0 ... 15 %, From UB
Open-circuit current 0 ... 20 mA |
| Outputs | Number of digital switching outputs 2 Piece(s) |
| Switching Output1 | Switching element Transistor, Push-pull
Switching principle Light switching (PNP)/dark switching (NPN) |
| Switching Output 2 | Switching element Transistor, Push-pull
Switching principle Dark switching (PNP)/light switching (NPN) |
| Time behaviour | Switching frequency 1,000 Hz
Response time 0.5 ms |
| Connection 1 | Type of connection Cable
Cable length 2,000 mm
Number of conductors 4 -wire |
| Mechanical data | Dimension (W x H x L) 11.4 mm x 34.2 mm x 18.3 mm
Housing material Plastic
Plastic housing PC-ABS
Lens cover material Plastic / PMMA
Net weight 50 g
Type of fastening Through-hole mounting
Via optional mounting device
Compatibility of materials ECOLAB |
| Environmental data | Ambient temperature, operation -40 ... 60 °C |
| Certifications | Degree of protection IP 67
IP 69K
Protection class III
Certifications c UL US
Standards applied IEC 60947-5-2 |
| Classification | Customs tariff number 85365019
ECLASS 5.1.4 27270901
ECLASS 8.0 27270901
ECLASS 9.0 27270901
ECLASS 10.0 27270901
ECLASS 11.0 27270901
ECLASS 12.0 27270901
ECLASS 13.0 27270901
ETIM 5.0 EC002716
ETIM 6.0 EC002716
ETIM 7.0 EC002716
ETIM 8.0 EC002716 |
