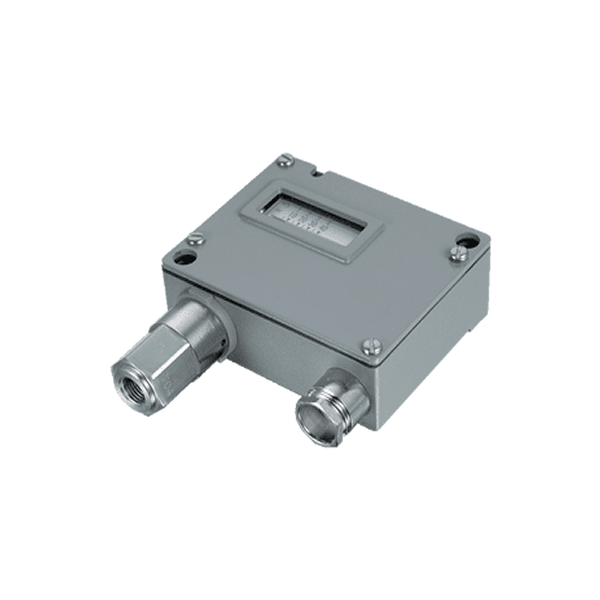

Trafag Brand PK 944/947 Pressostat
● In Stock
Main features
- Rugged aluminium housing
- Protection IP65
- Any mounting position possible
Product Description
Technical Data
More Information
| Product code |
944/947 |
| Name |
PK |
| Designation |
Pressostat |
| Product category |
Mechanical pressure switches |
| Measuring range |
1 ... 10 to 60 ... 600 bar |
| Measuring principle |
Piston |
| Applications |
Engine manufacturing
Hydraulics
Machine tools
Railways
Shipbuilding |
| Approval / conformity |
ABS, BV, CCS, DNV-GL, KRS, LRS, RINA EN60730-1/ EN60730-2-6: Type 2.B.H |
| Repeatability |
± 1.0 % FS typ. |
| Output signal |
1 Floating change-over contact (SPDT) |
| Electrical connections |
Screw terminal |
| Pressure connections |
G1/4" f, G1/2" m |
| Media temperature |
O-Ring NBR: -30°C ... +100°C O-Ring FKM: -15°C ... +150°C |
| Ambient temperature |
-20°C ... +70°C |
