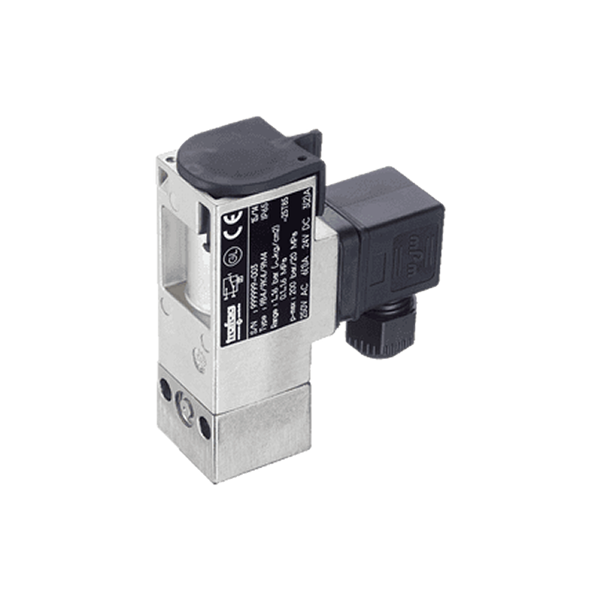

Trafag Brand PICOSTAT 9M4 Pressure Switch with membrane sensor
● In Stock
Main features
- Compact design
- Rugged housing
- Protection IP65
- Any mounting position possible
Product Description
Technical Data
More Information
| Product code |
9M4 |
| Name |
PST4M |
| Designation |
Picostat Pressure Switch |
| Product category |
Mechanical pressure switches |
| Measuring range |
1 ... 10 to 10 ... 100 bar 14 ... 150 to 150 ... 1500 psi |
| Measuring principle |
Membrane |
| Applications |
Engine manufacturing
Hydraulics
Machine tools
Railways
Shipbuilding |
| Approval / conformity |
ABS, BV, CCS, DNV-GL, KRS, LRS, RINA, EN60730-1/ EN60730-2-6: Type 2.B.H |
| Repeatability |
± 2.0 % FS typ. |
| Output signal |
1 Floating change-over contact (SPDT) |
| Electrical connections |
EN175301-803-A (DIN43650-A) |
| Pressure connections |
G1/8" f, G1/4" f, M10x1.0 f |
| Media temperature |
0°C ... +80°C |
| Ambient temperature |
0°C ... +80°C |
