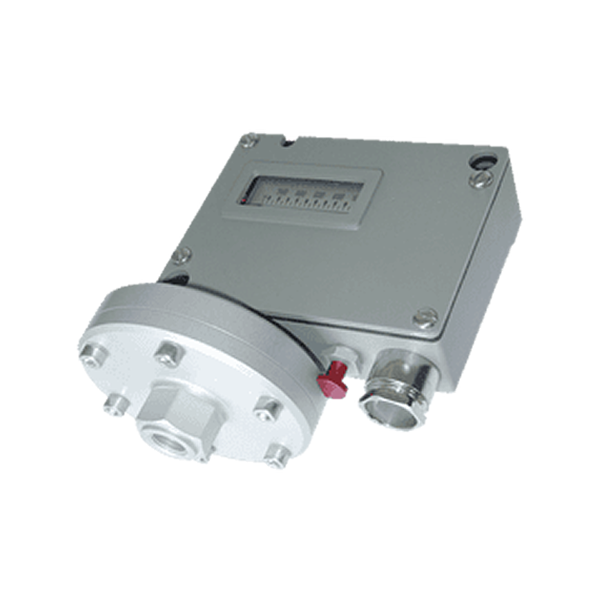

Trafag Brand 901/902/905/906 Limi Membrane Pressostat
ā In Stock
Main features
- Rugged aluminium housing
- Protection IP65
- Any mounting position possible
Product Description
Technical Data
More Information
| Product code |
901/902/905/906 |
| Designation |
Limi Membrane Pressostat |
| Product category |
Mechanical pressure switches |
| Measuring range |
30Ā ...Ā 600 and 50Ā ...Ā 1000 mbar |
| Measuring principle |
Membrane |
| Applications |
HVAC
Machine tools |
| Approval / conformity |
EN60730-1/ EN60730-2-6: Typ 2.B.H |
| Repeatability |
Ā± 1.0 % FS typ. |
| Output signal |
1 Floating change-over contact (SPDT) |
| Electrical connections |
Screw terminal |
| Pressure connections |
G1/4" f, G1/2" m |
| Media temperature |
-40Ā°CĀ ...Ā +150Ā°C |
| Ambient temperature |
-25Ā°CĀ ...Ā +70Ā°C |
