| Brand | Leuze |

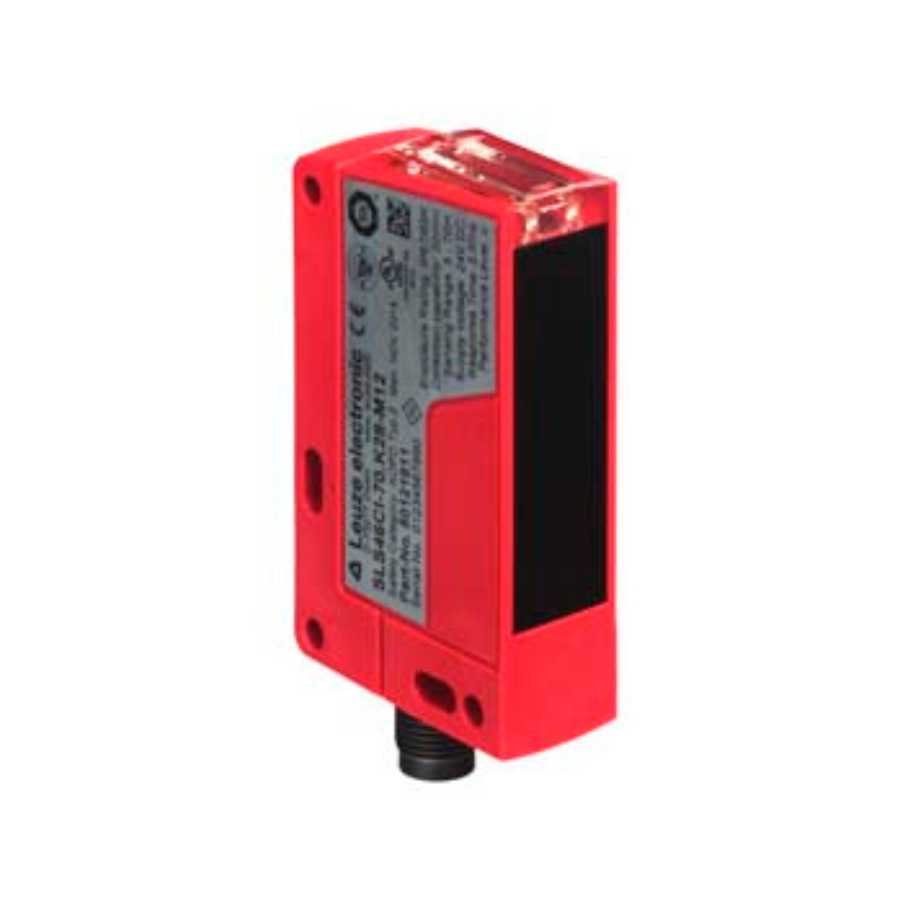

| Type | Single Veam Safety Device Receiver |
| Basic data | Series 46C |
| Functions | Alignment indicator
Diagnostic output |
| Characteristic parameters | Type 2, IEC/EN 61496, in combination with a suitable test monitoring unit, e.g. MSI-TR1B
SIL 1, IEC 61508, in combination with a suitable test monitoring unit, e.g. MSI-TR1B
SILCL 1, IEC/EN 62061, in combination with a suitable test monitoring unit, e.g. MSI-TR1B
Performance Level (PL) c, EN ISO 13849-1:2008, In combination with a suitable test monitoring unit, e.g. MSI-TR1B
MTTFd 400 years, EN ISO 13849-1
Mission time 20 years, EN ISO 13849-1
Category 2, EN ISO 13849:2008, In combination with a suitable test monitoring unit, e.g. MSI-TR1B |
| Electrical data | Protective circuit Polarity reversal protection
Short circuit protected |
| Performance data | Supply voltage UB 24 V, DC, -20 ... 20 %, Incl. residual ripple
Residual ripple 10 %, From UB
Open-circuit current 0 ... 15 mA |
| Outputs | Number of digital switching outputs 2 Piece(s) |
| Switching outputs | Switching voltage high, min. 22 V
Switching voltage low, max. 2 V
Switching voltage, typ. 23 V
Voltage type DC
Switching current, max. 100 mA
Switching voltage high: ≥(UB-2V)
low: ≤ 2 V |
| Switching output 1 | Switching element Transistor, PNP
Switching principle Dark switching
Function Diagnostic output |
| Switching output 2 | Switching element Transistor, PNP
Switching principle Light switching
Function Switching output |
| Time behaviour | Switching frequency 250 Hz
Response time 2.5 ms
Readiness delay 300 ms |
| Number of connections | Number of connections 1 Piece(s) |
| Connection 1 | Function Signal OUT
Voltage supply
Type of connection Connector
Thread size M12
Material Plastic
No. of pins 4 -pin |
| Mechanical data | Design Cubic
Dimension (W x H x L) 20.5 mm x 76.3 mm x 44 mm
Housing material Plastic
Plastic housing PC-PBT
Lens cover material Plastic / PMMA
Net weight 50 g
Housing color Red
Type of fastening Through-hole mounting
Compatibility of materials ECOLAB |
| Operation and display | Type of display LED
Number of LEDs 2 Piece(s) |
| Environmental data | Ambient temperature, operation -30 ... 60 °C
Ambient temperature, storage -30 ... 70 °C |
| Certifications | Degree of protection IP 67
IP 69K
Protection class III, Rating voltage 50 V
Certifications TÜV Süd
c TÜV NRTL US
c UL US
Standards applied IEC 60947-5-2, IEC/EN 61496 |
| Classifications | Customs tariff number 85365019
ECLASS 5.1.4 27272701
ECLASS 8.0 27272701
ECLASS 9.0 27272701
ECLASS 10.0 27272701
ECLASS 12.0 27272701
ECLASS 13.0 27272701
ETIM 5.0 EC001831
ETIM 6.0 EC001831
ETIM 7.0 EC001831
ETIM 8.0 EC001831 |
