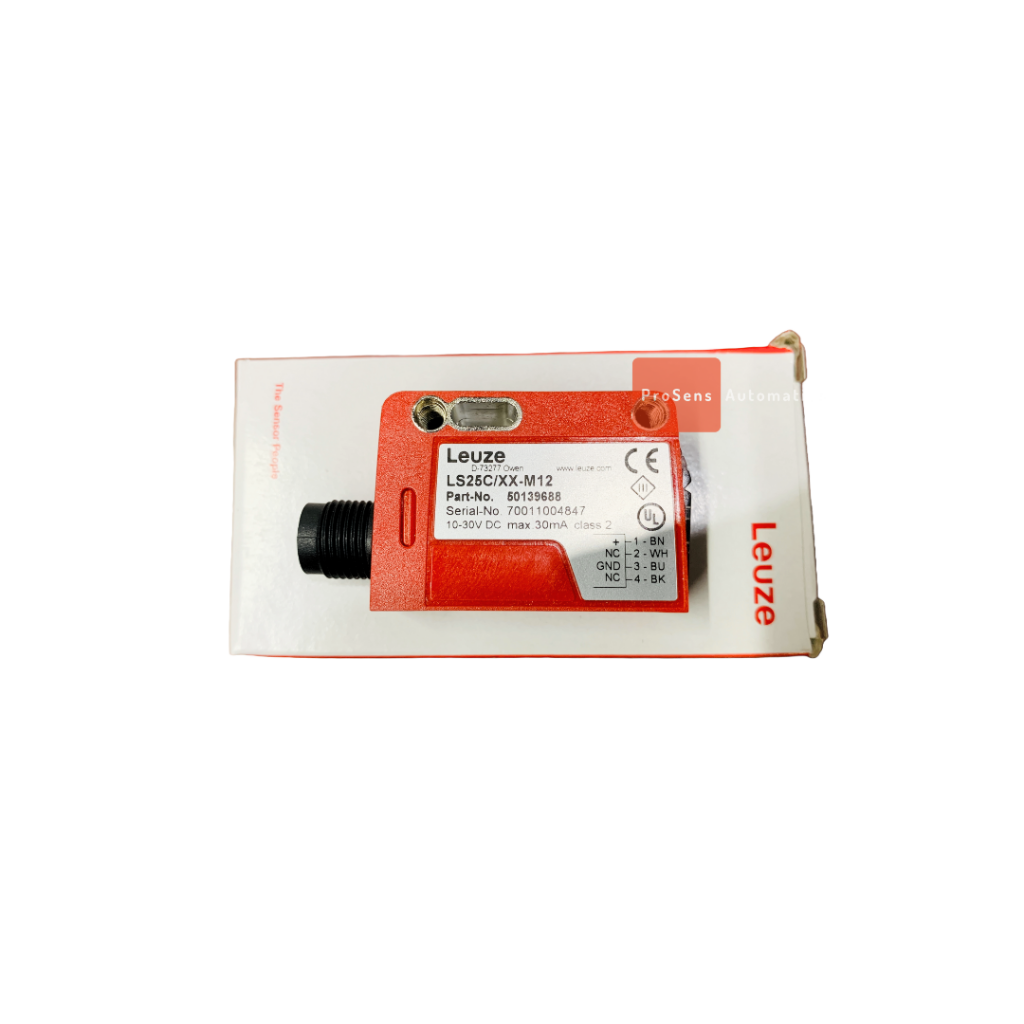

Series 25C
Operating principle Throughbeam principle
Device type Transmitter
Optical data
Operating range 0 ... 25 m
Operating range limit 0 ... 30 m
Light source LED, Red
Electrical data
Protective circuit Polarity reversal protection
Short circuit protected
Performance data
Supply voltage UB 10 ... 30 V, DC, Incl. residual ripple
Residual ripple 0 ... 15 %, From UB
Open-circuit current 0 ... 20 mA
Connection 1
Type of connection Connector
Thread size M12
Material PUR
No. of pins 4 -pin
Mechanical data
Dimension (W x H x L) 15 mm x 42.7 mm x 30 mm
Housing material Plastic
Plastic housing ABS
Lens cover material Plastic
Net weight 22 g
Type of fastening Through-hole mounting with M4 thread
Via optional mounting device
Compatibility of materials ECOLAB
Environmental data
Ambient temperature, operation -40 ... 60 °C
Certifications
Degree of protection IP 67
IP 69K
Protection class III
Certifications c UL US
Standards applied IEC 60947-5-2
