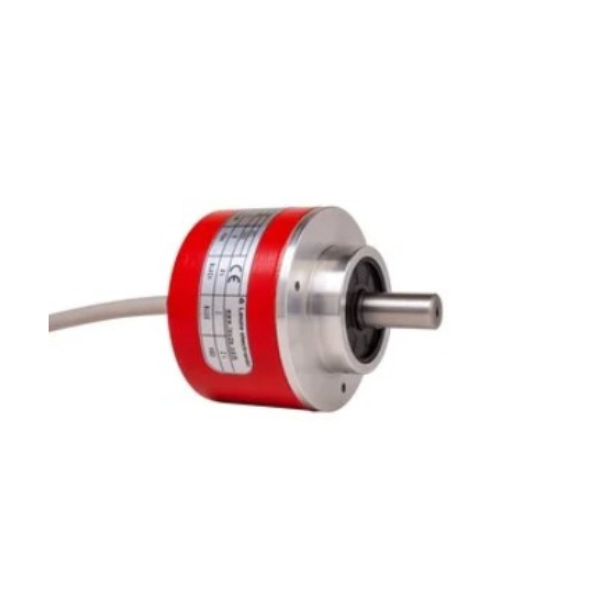

Leuze Brand EI 1058-S10x20C-0360H-050A Rotary encoder
● In Stock
Part no.: 50141891
Product Description
| Series |
EI 1xxx |
| Type |
Incremental rotary encoder |
| Max. operating speed |
6,000 r/min |
| Resolution |
360 p/r |
| Protective circuit |
Polarity reversal protection
Short circuit protected |
| Supply voltage UB |
5 ... 28 V, DC |
| Open-circuit current |
0 ... 150 mA |
| Switching frequency |
300,000 Hz |
| Function |
Signal OUT
Voltage supply |
| Type of connection |
Cable |
| Cable length |
5,000 mm |
| Connector |
Axial |
| Sheathing material |
PVC |
| Cable color |
Gray |
| Number of conductors |
8 -wire |
| Wire cross section |
0.14 mm² |
| Housing material |
Metal |
| Metal housing |
Aluminum |
| Flange type |
Clamping flange |
| Design |
Shaft |
| Dimension (Ø x L) |
10 mm |
| Dimension (Ø x L) |
20 mm |
| Start-up torque |
0.5 N·m |
| Shaft load - axial |
60 N |
| Shaft load - radial |
120 N |
| Ambient temperature, operation |
-40 ... 70 °C |
| Ambient temperature, storage |
-40 ... 70 °C |
| Degree of protection |
IP 65 |
| Standards applied |
IEC 61000-6-2:2016, IEC 61000-6-4:2016 + A1 |
| Test procedure for vibration in accordance with standard |
10g IEC 68-2-6 (10…2000 Hz) |
