Galvanically separated supply voltages for control and performance electronics
Extremely accurate positioning due to measurement of the position at the output side
Easy and low-cost mounting via hollow shaft
Bus interfaces simplify start-up and wiring complexity
Address may be set using the bus or an address switch
Baud rate set via switch
Status messages retrievable via bus
Positioning system with 100 W power output

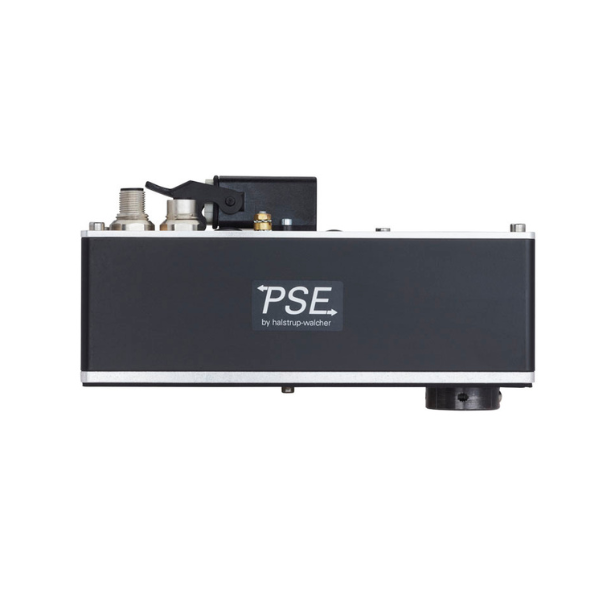

The positioning system PSE 34_-14 is an intelligent, compact solution for the automatic adjustment of auxiliary and positioning axes comprising an EC-motor, gear, controller, measuring system and various interfaces. The integrated electronic control feature frees up the machine´s central control unit. No external motors, proximity or limit switches are required. The absolute measuring system at 250 rotations eliminates the need for time-consuming reference runs and increases the efficiency of the machine. Direct measurement of the position at the output shaft ensures highly accurate positioning. The galvanically separated supply voltages for the control and performance electronics permit the implementation of an emergency shut-off function without interrupting communication with the control module.
Design
Horizontal construction
Nominal torque / Nominal rated speed
PSE 3410-14: 10 Nm / 80 rpm
PSE 3418-14: 18 Nm / 60 rpm
Data interface
CANopen, PROFIBUS DP, Sercos, EtherCAT, PROFINET, EtherNet/IP, POWERLINK, IO-Link
Positioning accuracy
0.9°
(absolute measurement of position taken directly at the output shaft)
Output shaft
14 mm hollow shaft with clamp and feather key
Positioning range
250 rotations, not subject to mechanical limits
Supply voltage
24 VDC ± 10 %
galvanically seperated between control and motor and bus
Protection class
IP 54
