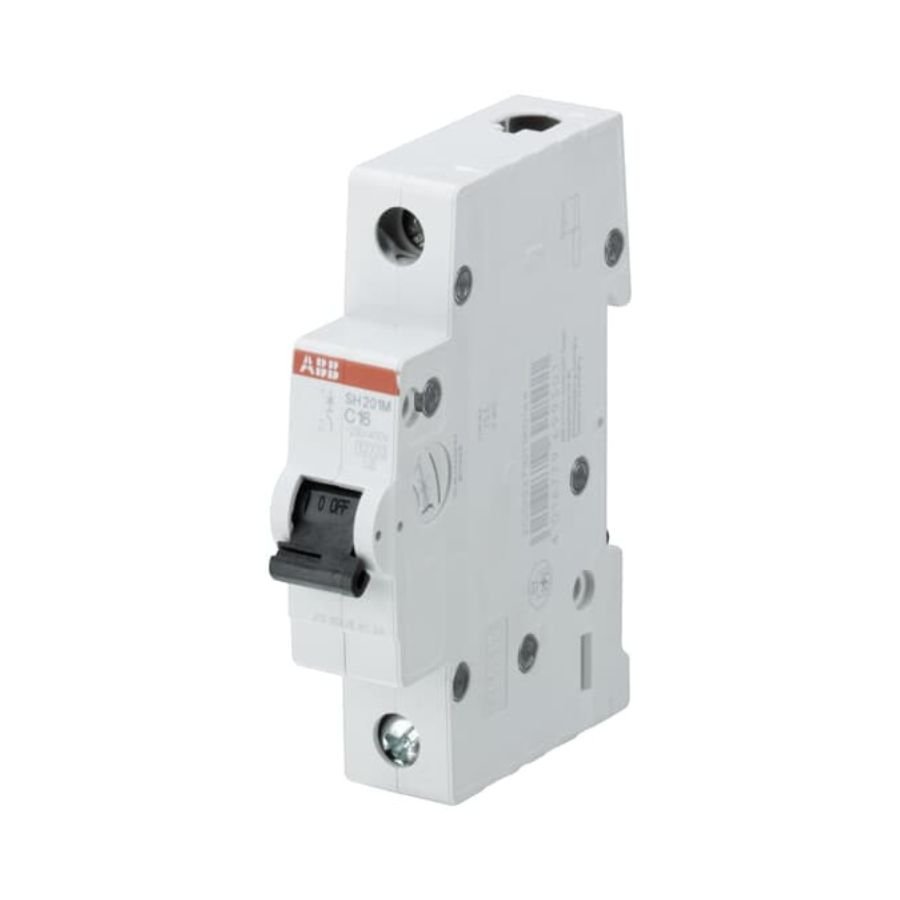

ABB Brand SH201M-C63 Miniature Circuit Breaker – 1P – C – 63 A

Technical

• Standards:

  IEC/EN 60898-1

• Tripping Characteristic:

  C

• Rated Operational Voltage:

  acc. to IEC 60898-1 230 / 400 V AC

• Operational Voltage:

  Maximum (Incl. Tolerance) 253 V AC Minimum 12 V AC

• Rated Insulation Voltage (U_i):

  acc. to IEC/EN 60664-1 440 V

• Rated Impulse Withstand Voltage (U_imp):

  4 kV at 2000 m 5 kV at Sea Level 6.2 kV

• Dielectric Test Voltage:

  50/60 Hz, 1 min: 2 kV

• Input Voltage Type:

  AC

• Rated Current (I_n):

  63 A

• Rated Short-Circuit Capacity:

  (AC) 10 kA (230 / 400 V AC) 10 kA

• Rated Conditional Short-Circuit Current (I_nc):

  (230 V) 25 kA (400 V) 25 kA

• Rated Frequency (f):

  50 / 60 Hz

• Power Loss:

  4.8 W at Rated Operating Conditions per Pole 4.8 W

• Power Supply Connection:

  Arbitrary

• Contact Position Indication:

  ON / OFF

• Energy Limiting Class:

  3

• Electrical Endurance:

  10000 AC cycle

• Mechanical Endurance:

  20000 cycle

• Number of Poles:

  1

• Number of Protected Poles:

  1

• Overvoltage Category:

  III

• Tightening Torque:

  2 N·m

• Actuator Type:

  Toggle

• Screw Terminal Type:

  Cage Terminal

• Actuator Marking:

  I / O

• Actuator Material:

  Insulation Group II, Black, Sealable

• Housing Material:

  Insulation Group II, RAL 7035

• Mounting on DIN Rail:

  TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

• Mounting Position:

  Any

• Recommended Screw Driver:

  Pozidriv 2

• Accessories Available:

  Yes

• Connecting Capacity:

  Conductor 25 / 25 mm² Flexible with Ferrule 0.75 ... 16 mm² Flexible 0.75 ... 16 mm² Rigid 0.75 ... 25 mm² Stranded 0.75 ... 25 mm²

• Installation Size:

  acc. to DIN 43880 1

• Terminal Type:

  Screw Terminals
